- A selection screen
- An ALV
- A smartform
Figure1. Selection screen
Figure2. ALV screen with Report button
Figure3. Final smartform output
This program has 3 main steps. First the user enter data into selection screen and execute. Then an alv shown due to the data inserted to the selection screen. Then the user can select rows from selection screen and click Report button. After that the smartform output shows according to the selected data of the ALV.
The program has three includes.
CODE
*&---------------------------------------------------------------------*
*& Include ZTHI_ALVSF_TOP*&---------------------------------------------------------------------*
TABLES: mara.
TYPE-POOLS: slis.TYPES: BEGIN OF ty_mara,
select TYPE c,
matnr TYPE mara-matnr,
ersda TYPE mara-ersda,
ernam TYPE mara-ernam,
aenam TYPE mara-aenam,
END OF ty_mara.
TYPES: BEGIN OF ty_makt,
mandt TYPE mandt,
matnr TYPE makt-matnr,
maktx TYPE makt-maktx,
maktg TYPE makt-maktg,
END OF ty_makt.
TYPES: BEGIN OF ty_matnr,
matnr TYPE mara-matnr,
END OF ty_matnr.
DATA: it_mara TYPE STANDARD TABLE OF ty_mara,
wa_mara TYPE ty_mara,
it_makt TYPE ZTBL_TYMAKT,
wa_makt TYPE ZTY_MAKT,
it_matnr TYPE STANDARD TABLE OF ty_matnr.
DATA: c_ccont TYPE REF TO cl_gui_custom_container, "Custom container object
c_alvgd TYPE REF TO cl_gui_alv_grid, "ALV grid object
it_fcat TYPE lvc_t_fcat, "Field catalogue
it_layout TYPE lvc_s_layo. "Layout
DATA lv_fldcat TYPE lvc_s_fcat.
DATA: i_rows TYPE lvc_t_row.
DATA: row LIKE LINE OF i_rows.
Data : fm_name TYPE rs38l_fnam.
*&---------------------------------------------------------------------*
*& Include ZTHI_ALVSF_SEL*&---------------------------------------------------------------------*
SELECTION-SCREEN BEGIN OF BLOCK parm.
SELECT-OPTIONS: p_matnr FOR mara-matnr.SELECT-OPTIONS: p_ersda FOR mara-ersda.
SELECT-OPTIONS: p_ernam FOR mara-ernam.
SELECT-OPTIONS: p_aenam FOR mara-aenam.
SELECTION-SCREEN END OF BLOCK parm.
AT SELECTION-SCREEN.
START-OF-SELECTION.
PERFORM sel_alv_data.
*PERFORM build_fieldcatalog.
CALL SCREEN 0600.
*PERFORM dis_alv.
*&---------------------------------------------------------------------*
*& Include ZTHI_ALVSF_FUN*&---------------------------------------------------------------------*
FORM sel_alv_data.
SELECT * FROM mara INTO CORRESPONDING FIELDS OF TABLE it_mara
WHERE matnr IN p_matnr AND
ersda IN p_ersda AND
ernam IN p_ernam AND
aenam IN p_aenam.
ENDFORM.
MODULE STATUS_0600 OUTPUT.
it_layout-SEL_MODE = 'A'. "multiple row selection mode
*MODULE alv_grid OUTPUT.
CREATE OBJECT c_ccont
EXPORTING
container_name = 'CC_CONT'.
CREATE OBJECT c_alvgd
EXPORTING
i_parent = c_ccont.
* Set field for ALV
PERFORM alv_build_fieldcat.
* Set ALV attributes FOR LAYOUT
PERFORM alv_report_layout.
CHECK NOT c_alvgd IS INITIAL.
* Call ALV GRID
CALL METHOD c_alvgd->set_table_for_first_display
EXPORTING
is_layout = it_layout
CHANGING
it_outtab = it_mara
it_fieldcatalog = it_fcat
EXCEPTIONS
invalid_parameter_combination = 1
program_error = 2
too_many_lines = 3
OTHERS = 4.
IF sy-subrc <> 0.
MESSAGE ID sy-msgid TYPE sy-msgty NUMBER sy-msgno
WITH sy-msgv1 sy-msgv2 sy-msgv3 sy-msgv4.
ENDIF.
*************************************************************
ENDMODULE. " ALV_GRID OUTPUT
FORM alv_report_layout.
it_layout-cwidth_opt = 'X'.
it_layout-zebra = 'X'.
ENDFORM.
FORM alv_build_fieldcat.
CLEAR lv_fldcat.
lv_fldcat-row_pos = '1'.
lv_fldcat-col_pos = '1'.
lv_fldcat-fieldname = 'MATNR'.
lv_fldcat-tabname = 'IT_OUTPUT'.
lv_fldcat-outputlen = 8.
lv_fldcat-scrtext_m = 'Material'.
lv_fldcat-icon = 'X'.
APPEND lv_fldcat TO it_fcat.
CLEAR lv_fldcat.
lv_fldcat-row_pos = '1'.
lv_fldcat-col_pos = '2'.
lv_fldcat-fieldname = 'ERSDA'.
lv_fldcat-tabname = 'IT_OUTPUT'.
lv_fldcat-outputlen = 8.
lv_fldcat-scrtext_m = 'Created On'.
lv_fldcat-icon = ''.
APPEND lv_fldcat TO it_fcat.
CLEAR lv_fldcat.
lv_fldcat-row_pos = '1'.
lv_fldcat-col_pos = '3'.
lv_fldcat-fieldname = 'ERNAM'.
lv_fldcat-tabname = 'IT_OUTPUT'.
lv_fldcat-outputlen = 8.
lv_fldcat-scrtext_m = 'Created Person'.
lv_fldcat-icon = ''.
APPEND lv_fldcat TO it_fcat.
CLEAR lv_fldcat.
lv_fldcat-row_pos = '1'.
lv_fldcat-col_pos = '4'.
lv_fldcat-fieldname = 'AENAM'.
lv_fldcat-tabname = 'IT_OUTPUT'.
lv_fldcat-outputlen = 8.
lv_fldcat-scrtext_m = 'Changed Person'.
lv_fldcat-icon = ''.
APPEND lv_fldcat TO it_fcat.
ENDFORM.
MODULE USER_COMMAND_0600 INPUT.
CASE sy-ucomm.
WHEN 'RPT'.
CALL METHOD c_alvgd->get_selected_rows
IMPORTING
ET_INDEX_ROWS = i_rows.
DATA: rs_selfield TYPE slis_selfield.
LOOP AT i_rows INTO row.
READ TABLE it_mara INTO wa_mara INDEX row-index.
APPEND wa_mara-matnr TO it_matnr.
CLEAR wa_mara.
ENDLOOP.
"MESSAGE row-matnr TYPE 'I'.
PERFORM makt_data.
PERFORM call_sf.
ENDCASE.
ENDMODULE.
FORM makt_data.
SELECT matnr maktx maktg FROM makt INTO CORRESPONDING FIELDS OF TABLE it_makt FOR ALL ENTRIES IN it_matnr
WHERE matnr = it_matnr-matnr.
ENDFORM.
form call_sf.
CALL FUNCTION 'SSF_FUNCTION_MODULE_NAME'
EXPORTING
formname = 'ZTHI_ALVSF_FUN_SF'
* VARIANT = ' '
* DIRECT_CALL = ' '
IMPORTING
FM_NAME = fm_name
EXCEPTIONS
NO_FORM = 1
NO_FUNCTION_MODULE = 2
OTHERS = 3
.
IF sy-subrc <> 0.
MESSAGE ID SY-MSGID TYPE SY-MSGTY NUMBER SY-MSGNO
WITH SY-MSGV1 SY-MSGV2 SY-MSGV3 SY-MSGV4.
ENDIF.
CALL FUNCTION fm_name
* EXPORTING
* ARCHIVE_INDEX =
* ARCHIVE_INDEX_TAB =
* ARCHIVE_PARAMETERS =
* CONTROL_PARAMETERS =
* MAIL_APPL_OBJ =
* MAIL_RECIPIENT =
* MAIL_SENDER =
* OUTPUT_OPTIONS =
* USER_SETTINGS = 'X'
* IMPORTING
* DOCUMENT_OUTPUT_INFO =
* JOB_OUTPUT_INFO =
* JOB_OUTPUT_OPTIONS =
TABLES
IT_MAKT = it_makt
EXCEPTIONS
FORMATTING_ERROR = 1
INTERNAL_ERROR = 2
SEND_ERROR = 3
USER_CANCELED = 4
OTHERS = 5
.
IF SY-SUBRC <> 0.
MESSAGE ID SY-MSGID TYPE SY-MSGTY NUMBER SY-MSGNO
WITH SY-MSGV1 SY-MSGV2 SY-MSGV3 SY-MSGV4.
ENDIF.
ENDFORM.
it_layout-SEL_MODE = 'A'. "multiple row selection mode
*MODULE alv_grid OUTPUT.
CREATE OBJECT c_ccont
EXPORTING
container_name = 'CC_CONT'.
CREATE OBJECT c_alvgd
EXPORTING
i_parent = c_ccont.
* Set field for ALV
PERFORM alv_build_fieldcat.
* Set ALV attributes FOR LAYOUT
PERFORM alv_report_layout.
CHECK NOT c_alvgd IS INITIAL.
* Call ALV GRID
CALL METHOD c_alvgd->set_table_for_first_display
EXPORTING
is_layout = it_layout
CHANGING
it_outtab = it_mara
it_fieldcatalog = it_fcat
EXCEPTIONS
invalid_parameter_combination = 1
program_error = 2
too_many_lines = 3
OTHERS = 4.
IF sy-subrc <> 0.
MESSAGE ID sy-msgid TYPE sy-msgty NUMBER sy-msgno
WITH sy-msgv1 sy-msgv2 sy-msgv3 sy-msgv4.
ENDIF.
*************************************************************
ENDMODULE. " ALV_GRID OUTPUT
FORM alv_report_layout.
it_layout-cwidth_opt = 'X'.
it_layout-zebra = 'X'.
ENDFORM.
FORM alv_build_fieldcat.
CLEAR lv_fldcat.
lv_fldcat-row_pos = '1'.
lv_fldcat-col_pos = '1'.
lv_fldcat-fieldname = 'MATNR'.
lv_fldcat-tabname = 'IT_OUTPUT'.
lv_fldcat-outputlen = 8.
lv_fldcat-scrtext_m = 'Material'.
lv_fldcat-icon = 'X'.
APPEND lv_fldcat TO it_fcat.
CLEAR lv_fldcat.
lv_fldcat-row_pos = '1'.
lv_fldcat-col_pos = '2'.
lv_fldcat-fieldname = 'ERSDA'.
lv_fldcat-tabname = 'IT_OUTPUT'.
lv_fldcat-outputlen = 8.
lv_fldcat-scrtext_m = 'Created On'.
lv_fldcat-icon = ''.
APPEND lv_fldcat TO it_fcat.
CLEAR lv_fldcat.
lv_fldcat-row_pos = '1'.
lv_fldcat-col_pos = '3'.
lv_fldcat-fieldname = 'ERNAM'.
lv_fldcat-tabname = 'IT_OUTPUT'.
lv_fldcat-outputlen = 8.
lv_fldcat-scrtext_m = 'Created Person'.
lv_fldcat-icon = ''.
APPEND lv_fldcat TO it_fcat.
CLEAR lv_fldcat.
lv_fldcat-row_pos = '1'.
lv_fldcat-col_pos = '4'.
lv_fldcat-fieldname = 'AENAM'.
lv_fldcat-tabname = 'IT_OUTPUT'.
lv_fldcat-outputlen = 8.
lv_fldcat-scrtext_m = 'Changed Person'.
lv_fldcat-icon = ''.
APPEND lv_fldcat TO it_fcat.
ENDFORM.
MODULE USER_COMMAND_0600 INPUT.
CASE sy-ucomm.
WHEN 'RPT'.
CALL METHOD c_alvgd->get_selected_rows
IMPORTING
ET_INDEX_ROWS = i_rows.
DATA: rs_selfield TYPE slis_selfield.
LOOP AT i_rows INTO row.
READ TABLE it_mara INTO wa_mara INDEX row-index.
APPEND wa_mara-matnr TO it_matnr.
CLEAR wa_mara.
ENDLOOP.
"MESSAGE row-matnr TYPE 'I'.
PERFORM makt_data.
PERFORM call_sf.
ENDCASE.
ENDMODULE.
FORM makt_data.
SELECT matnr maktx maktg FROM makt INTO CORRESPONDING FIELDS OF TABLE it_makt FOR ALL ENTRIES IN it_matnr
WHERE matnr = it_matnr-matnr.
ENDFORM.
form call_sf.
CALL FUNCTION 'SSF_FUNCTION_MODULE_NAME'
EXPORTING
formname = 'ZTHI_ALVSF_FUN_SF'
* VARIANT = ' '
* DIRECT_CALL = ' '
IMPORTING
FM_NAME = fm_name
EXCEPTIONS
NO_FORM = 1
NO_FUNCTION_MODULE = 2
OTHERS = 3
.
IF sy-subrc <> 0.
MESSAGE ID SY-MSGID TYPE SY-MSGTY NUMBER SY-MSGNO
WITH SY-MSGV1 SY-MSGV2 SY-MSGV3 SY-MSGV4.
ENDIF.
CALL FUNCTION fm_name
* EXPORTING
* ARCHIVE_INDEX =
* ARCHIVE_INDEX_TAB =
* ARCHIVE_PARAMETERS =
* CONTROL_PARAMETERS =
* MAIL_APPL_OBJ =
* MAIL_RECIPIENT =
* MAIL_SENDER =
* OUTPUT_OPTIONS =
* USER_SETTINGS = 'X'
* IMPORTING
* DOCUMENT_OUTPUT_INFO =
* JOB_OUTPUT_INFO =
* JOB_OUTPUT_OPTIONS =
TABLES
IT_MAKT = it_makt
EXCEPTIONS
FORMATTING_ERROR = 1
INTERNAL_ERROR = 2
SEND_ERROR = 3
USER_CANCELED = 4
OTHERS = 5
.
IF SY-SUBRC <> 0.
MESSAGE ID SY-MSGID TYPE SY-MSGTY NUMBER SY-MSGNO
WITH SY-MSGV1 SY-MSGV2 SY-MSGV3 SY-MSGV4.
ENDIF.
ENDFORM.
Then added a screen (screen600) into the program. Following are the screen details.
Screen 600
PROCESS BEFORE OUTPUT.
MODULE STATUS_0600.
*
PROCESS AFTER INPUT.
MODULE USER_COMMAND_0600.
MODULE STATUS_0600.
*
PROCESS AFTER INPUT.
MODULE USER_COMMAND_0600.
Using screen painter I added a custom control and a push button to the screen 600.

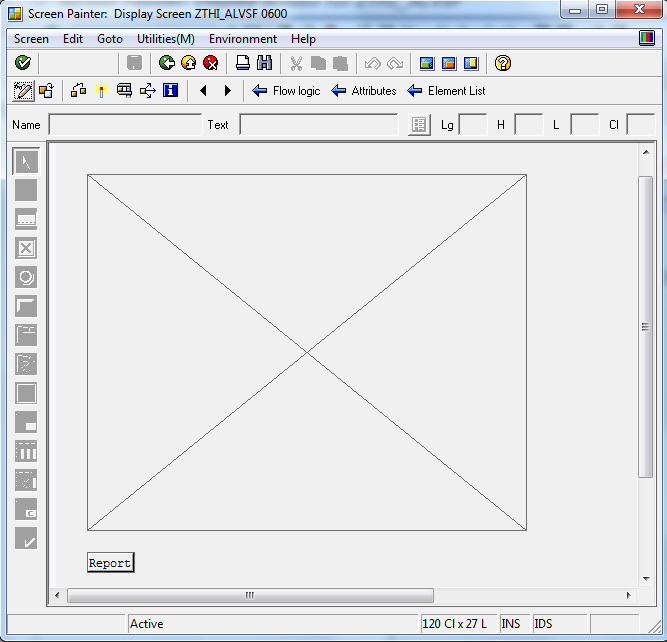

Figure4.Screen600
Set the properties of custom control and pushbutton as below.
Figure5.properties of custom control

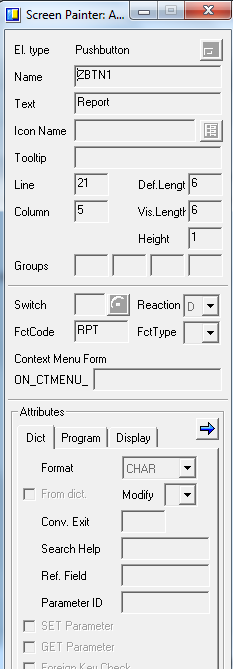

Figure6. properties of push button
Now we are done with the program. Then smartform 'ZTHI_ALVSF_FUN_SF' is created as follow.
Create table IT_MAKT of type ZTBL_TYMAKT is created in the form interface as below.
Figure7
Create Global data WA_MAKT of type ZTY_MAKT sa below in the Global data.
Figure8
Then create a table in the main window and loop IT_MAKT into WA_MAKT in order to print
wa_makt-matnr, wa_makt-maktx and wa_makt-maktg as below.
Figure9
Finally, ZTY_MAKT is a global structure as shown below.
Figure10
And ZTBL_TYMAKT is a table type with ZTY_MAKT as the line type as shown below.
Figure11
